If you are building a swimming pool, a deck or shed, excavating property, installing a driveway or your development is over or near a water or sewer main, you may require a Service Protection Report (Pegout).

The sewer and water infrastructure in and around Sydney are an asset owned by Sydney Water and it is their responsibility to ensure that these sewer and water pipes are protected against any kind of damage.

If your proposed development site is located over or near a Sydney Water asset, Sydney Water must approve your plans before you start work.

All Line Plumbing are Sydney Water Accredited Constructors

All Line Plumbing are proud to be a Sydney Water Listed constructor. Our capabilities are MS, RW, S1, W1 and Service Protection Report (Pegouts).

Contact Us Now

Sydney Water Sewer Pegout


Sydney Water Compliance Certification and Approvals

Generally, when you develop or subdivide land, your council/certifier will require the approval from Sydney Water (Section 73 Compliance Certificate).

There are usually four main steps involved in getting a Section 73 Compliance Certificate:

Assessment

Assessing development plans against Sydney Water servicing requirements.

Read more

Notice of Requirements

Instructions detailing water/sewer connections or protection of asset requirements.

Read more

Construction

Works outlined in the Notice of Assessment to be completed by a Sydney Water listed constructor.

Read more

Certificate and Approvals

Once all work has been constructed and inspected, certificates and approvals will be issued.

Read more


Assessment

Usually as part of any new development, a prerequisite of the Section 73 Compliance Certificate process will require your plans to be assessed.

A Service Protection Report - also known as a Sewer Pegout, enables the accurate plotting of Sydney Water assets onto your building plans which will then determine if your development area is within the Zone of Influence (ZOI) and if there would be any potential for damage or stress to these pipes during construction.

A Sewer Pegout is usually needed if you are:

  • building a swimming pool, deck, gazebo or carport.
  • building a granny flat.
  • excavating your property.
  • installing a driveway or large paved area.
  • developing or building over a water or sewer main.

Process of a Sewer Pegout

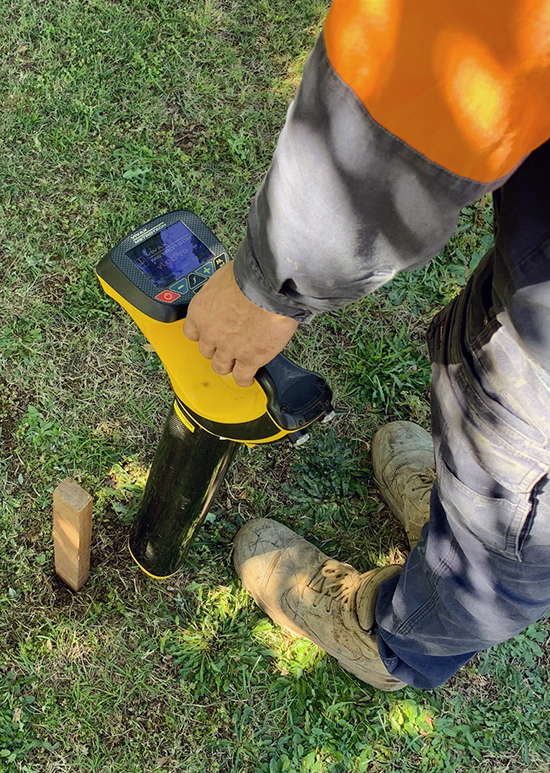

A trained sewer pegout technician from All Line Plumbing will attend the site and locate the sewer main and any other Sydney Water asset within the proposed development area. A sewer pegout report is then prepared detailing the information collected.

This report will generally outline the location and environment of the existing Sydney Water asset and details information such as the pipe type, depth, service of the asset (sewer, water, stormwater), size, structure and strata which the asset is laid (such as clay, sand or rock).

All Line Plumbing are Sydney Water Accredited Constructors

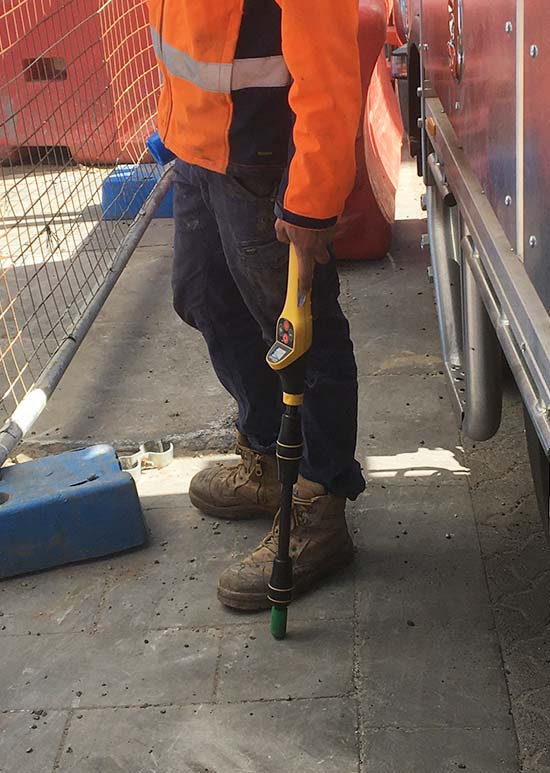

All Line Plumbing use the latest equipment to accurately locate the Sydney Water assets within the development area. We will ensure that your sewer pegout is done as quickly and efficiently as possible.

Contact Us Now

If your development is inside the ZOI: a design detailing the steps needed to protect the Sydney Water asset will need to be developed in accordance with the Sydney Water standards. A Water Servicing Coordinator (WSC) may also be required to form the application using the development plans in conjunction with the sewer pegout report.

What is a Water Servicing Coordinator (WSC)?

A WSC is a listed provider for Sydney Water who can review your building plans, help with the documentation needed for your application and specify the Sydney Water asset protection options and requirements.

Sydney Water Sewer Pegout Process


Notice of Requirements

Once your plan has been submitted to Sydney Water, a Notice of Requirements will be sent from Sydney Water outlying works that will need to be completed. Generally a Sydney Water listed constructor will be required to complete these works.

All Line Plumbing are accredited Sydney Water Major and Minor Works Constructors.


Construction

All work outlined in the notice will need to be done before you are issued a Section 73 Compliance Certificate from Sydney Water.

Common works that might need to be completed include:

  • diversion, upgrade or installation of extra water services, connections or pipes.
  • new sewer junction connection and/or protect existing assets; such as encasing pipes in concrete or relocating/diverting sewer pipes.
  • paying developer fees.

All Line Plumbing are accredited Sydney Water Major and Minor Works Constructors.


Certificate and Approvals

A Section 73 Compliance Certificate confirms you've satisfied the Sydney Water requirements to adequately service your development area with water, wastewater and stormwater services.

Read more about Section 73s and Approvals on the Sydney Water Website:

All Line Plumbing are Sydney Water Accredited Constructors

All Line Plumbing are Sydney Water listed constructors and will build and supervise any works outlined in the Notice of Requirements set by Sydney Water.

Contact Us Now
